Aluminum Gate Designs & Styles


All Gates:

  • Gate frames are welded and pickets are also welded at cross members for added strength
  • Top and bottom rails match fence sections
  • Uprights are 1-5/8” x .125” wall thickness
  • Order matching 48” wide walk gate or 60” wide for double drive gate
  • 48” wide accent gates available for each style

    Posts and Rails: 6061 T6 Aluminum Alloy
    Pickets: 6063 T5 Aluminum Alloy
    DuPont Powder Coating


Sizes and Technical Specifications

Posts: 2” sq. x .060” wall
Gate Posts: 2” sq. x .125” wall
Rails Top Wall: 1” sq. x .060” wall
Rails Side Wall: 1” (OV 1-1/2”) x .082” wall
Pickets: 5/8” sq. (OV 3/4”) x .050” wall
Picket Spacing: 3-15/16”
Heights: 48” and 54”
Colors: Black(BK) and Bronze(BZ)

Swing Gates
Swing gates are self-closing and self-latching. They are available in several standard widths from 36" up to 72", although special size gates may be ordered. In addition, Industrial gates can be fabricated up to 15 feet in length. No other gate can match the quality and strength
Double Gates
Two swing gates can be used to create a double drive gate when larger openings are needed. Two drop rods keep the gates in place and are included, along with all necessary hardware.
Accent Gates
To differentiate your walk gate from the rest of your fence, you may want to consider some exclusive Accent Gates. These attractive gates enhance the standard designs with gently arched top rails. They are completely welded with no bracing to interfere with the appearance of their curves. Accent Gates are made to order in either a 3’, 4' or 5’ width.
Rainbow Gates
Our Rainbow Gates offer a double gate with a single continuous curve over the span of the gate, rather than the double arch you would get from using two Accent Gates in the same opening. These double gates are available to fit into a 6’, 8’, or 10’ opening and are made with the same all-welded construction as Accent Gates

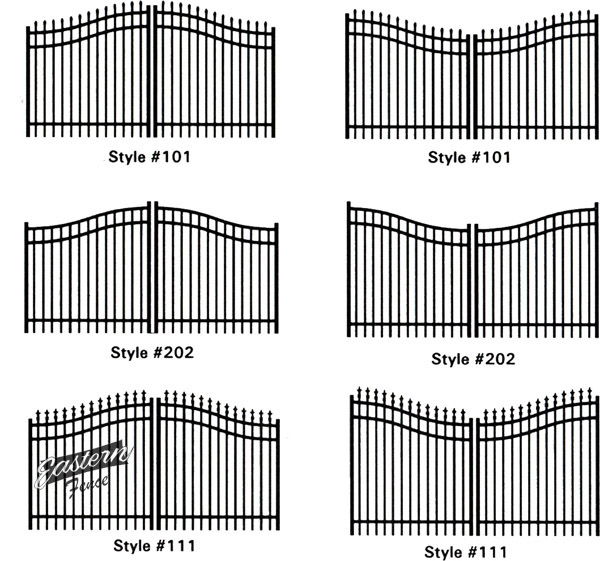

Estate Gates
These beautiful aluminum arched gates are available in several heights, colors, and styles, and will truly make a statement at the entrance to your home. The double gates can be paired to arch either upward or downward in heights of 4'/5', 5'/6', or 6'/7' - the choice is up to you. Gates are fabricated to match Styles #101, #111, and #202 and are made with Industrial size components that are welded together in widths of 12', 14', 16', 18', and 20'.
Gate Hardware
Hardware is included with most gate purchases, or you can order parts separately.

P............Electric Power Gates


Electric Gate Section Under Development
Please Check Back Shortly
